Cl2 Advanced 4 deg Cam (224 236) 58mm stroke engines
$82.00
In stock: 1 available
Save this product for later

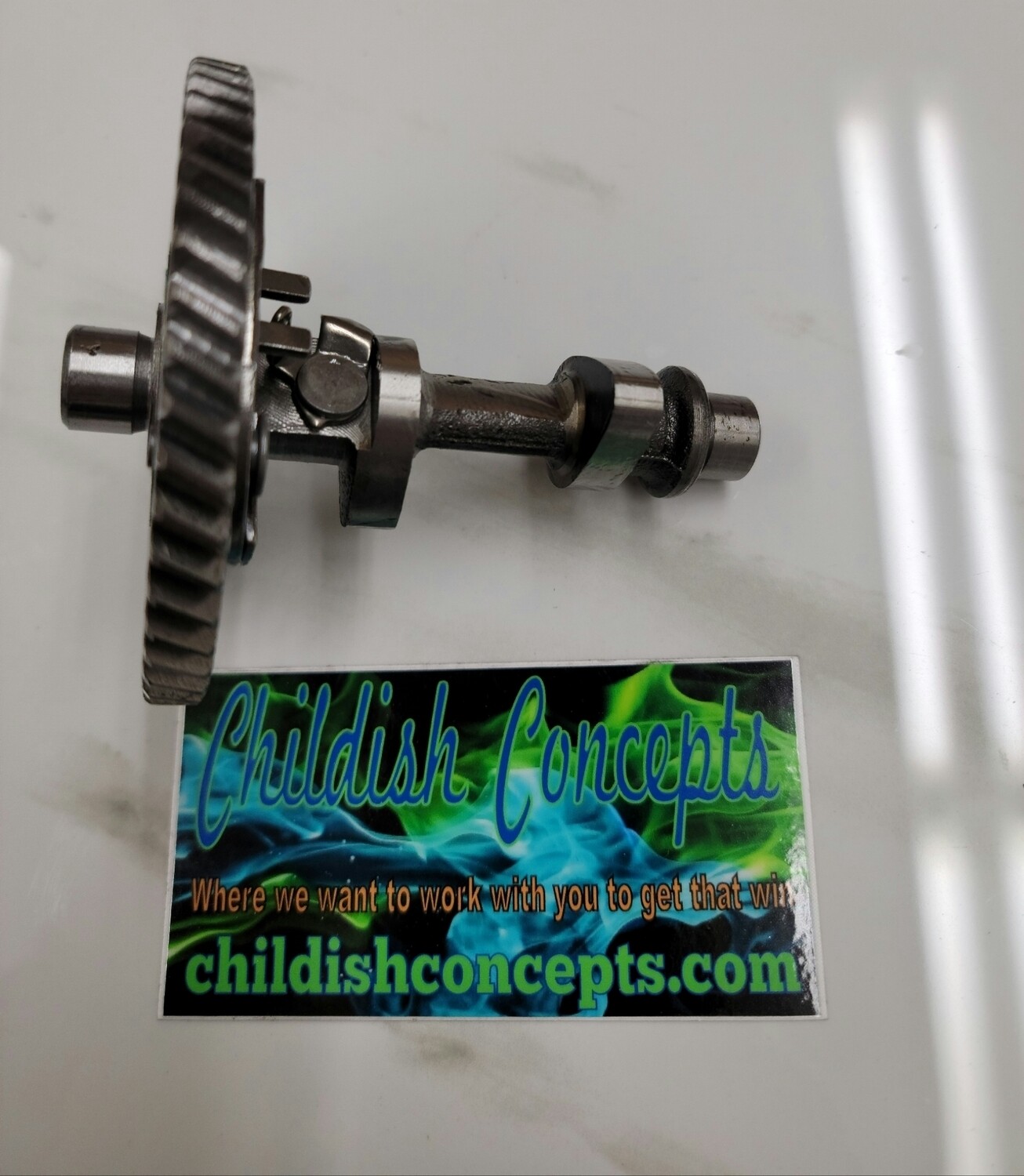

Cl2 Advanced 4 deg Cam (224 236) 58mm stroke engines
Product Details
- Advanced 4 deg to try to get all your power in before 5800 rpm making it a great cam for standard 30 series converters or even marine mud motor applications
- The lobes are hardened for extra durability, extending the life of this cam.
Specs
| Engine: | 224 Predator |
|---|---|
| Recommended Class: | All Stock Classes |
| Target (MAX) RPM: | 5800 |
| Spring Pressure (In / Ex): | 10.8 lbs |
| Valve Lash (In/Ex): | .003" |
| Ignition Timing: | 32 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 28.5 BTDC | 66.5 BBDC |
| Close: | 72.5 ABDC | 36.5 ATDC |
| Lift: | .2245" | .2305" |
| C/L: | 112.0 ATDC | 105.5 BTDC |
| DUR @ 50: | 219.5 Deg | 222.5 Deg |
| DUR @ 200: | 86.5 Deg | 97.5 Deg |
