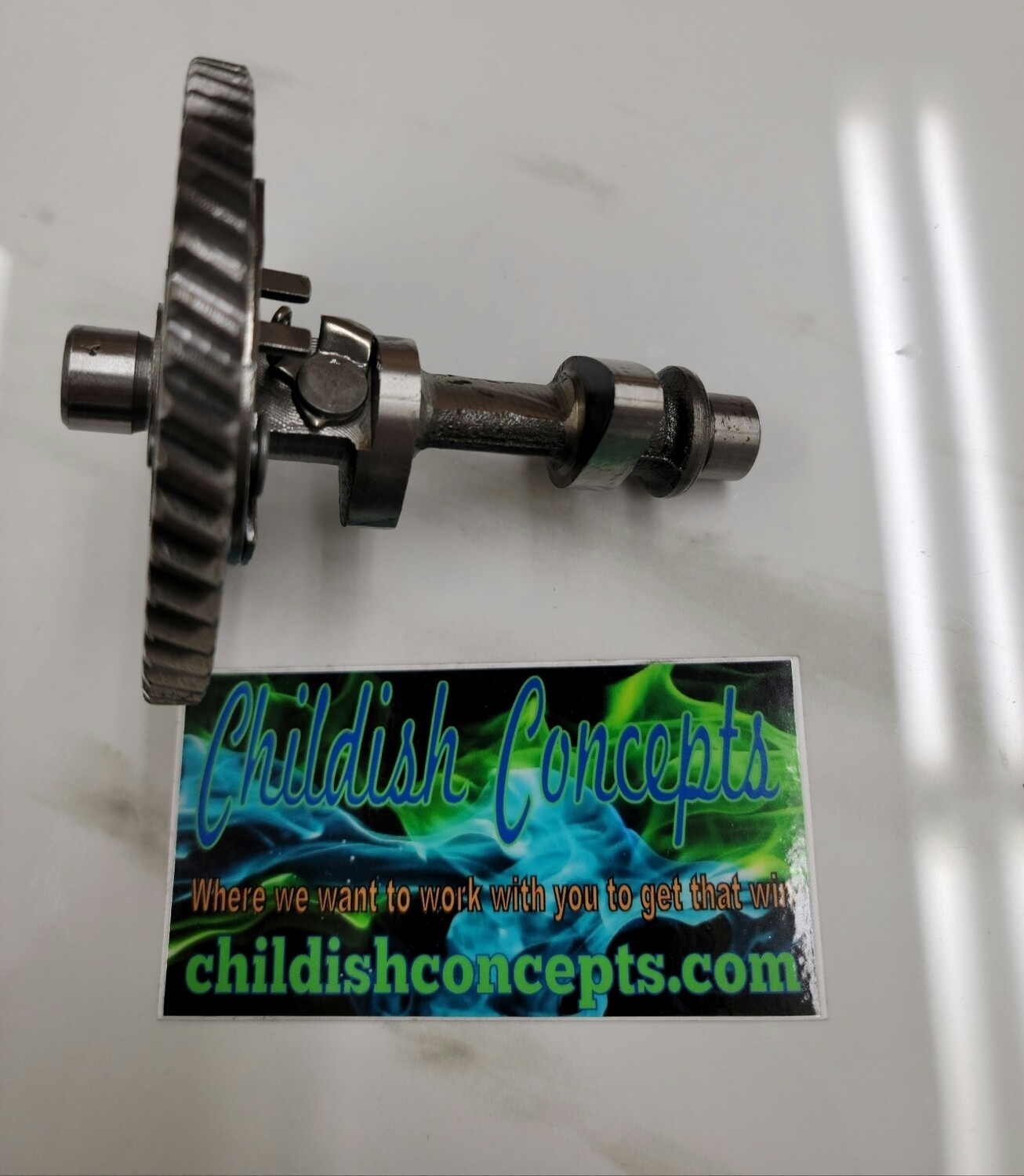

Cl1 Improved Cam (224 236) 58mm stroke engines
Product Details
- Designed in 2011, the CL1 Improved has a more retarded centerline to produce optimal top end horsepower.
- The DynoCams CL-1 Improved is legal for the current profile rules for stock classes.
- The lobes are hardened for extra durability, extending the life of this cam.
Specs
| Engine: | 224 Predator |
|---|---|
| Recommended Class: | Stock |
| Target (MAX) RPM: | 6000-6500 |
| Spring Pressure (In / Ex): | 10.8 lbs |
| Valve Lash (IN/EX): | .003" |
| Ignition Timing: | 32 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 39.0 BTDC | 76.5 BBDC |
| Close: | 82.0 ABDC | 47.0 ATDC |
| Lift: | .224" | .231" |
| C/L: | 112.5 ATDC | 106.0 BTDC |
| DUR @ 50: | 219.0 Deg | 222.5 Deg |
| DUR @ 200: | 86.5 Deg | 98.0 Deg |
