Cl1 Cam (224 236) 58mm stroke engines
$62.00
In stock: 1 available
Save this product for later

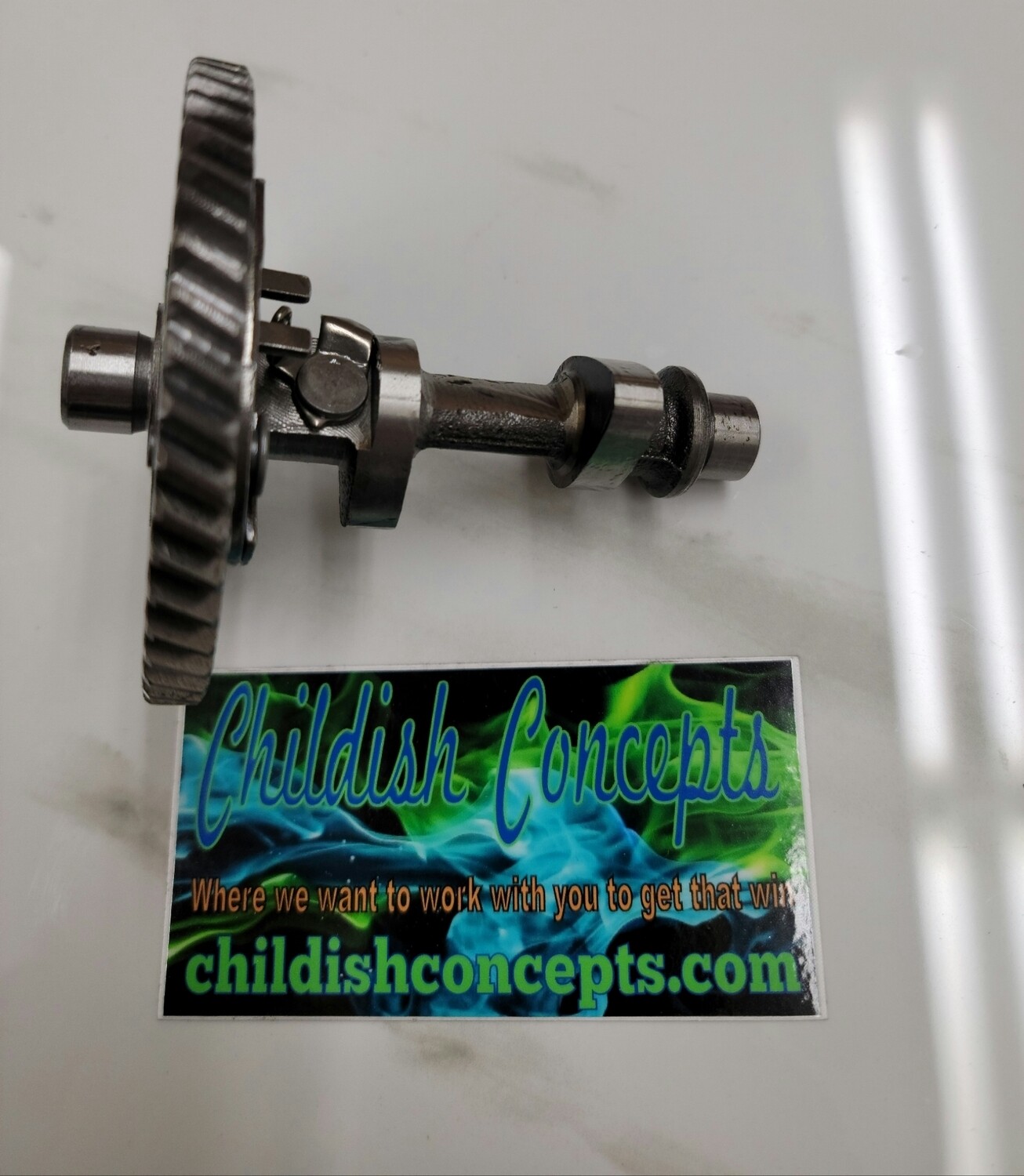

Cl1 Cam (224 236) 58mm stroke engines
Product Details
- Designed in 2010, this cam was the Original power house for clone engines. The CL1 Original has a wide power band and is a strong cam in restricted clases.
- The DynoCams CL-1 Original is legal for the current profile rules for stock classes.
- The lobes are hardened for extra durability, extending the life of this cam.
Specs
| Engine: | 224 predator |
|---|---|
| Recommended Class: | Restricted |
| Target (MAX) RPM: | 5200-5800 |
| Spring Pressure (In / Ex): | 10.8 lbs |
| Valve Lash (IN/EX): | .003" |
| Ignition Timing: | 32 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 43.0 BTDC | 80.5 BBDC |
| Close: | 76.5 ABDC | 41.0 ATDC |
| Lift: | .224" | .231" |
| C/L: | 108.5 ATDC | 110.0 BTDC |
| DUR @ 50: | 219.0 Deg | 222.5 Deg |
| DUR @ 200: | 85.5 Deg | 98.0 Deg |
