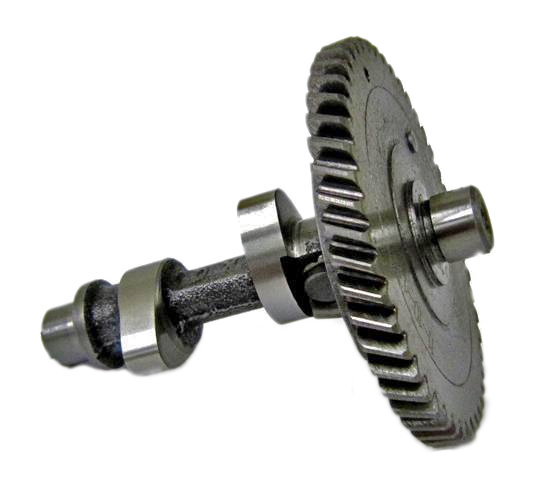

CL3 cam (clone or hemi only)
$50.50
In stock: 4 available
Save this product for later
CL3 cam (clone or hemi only)
Product Details
- The CL3 utilizes the -5 duration check, in the AKRA rule package, by allowing a softer ramp rate on the nose of the cam. This design has shown gains in the 6200+ RPM range with minimal loss in peak horsepower.
- The DynoCams CL3 is legal for the current profile rules for stock classes.
- The lobes are hardened for extra durability, extending the life of this cam.
Specs
| Engine: | 196cc OHV Clone, 212cc Hemi Predator |
|---|---|
| Recommended Class: | Unrestricted Stock Classes |
| Target (MAX) RPM: | 6400-6900 |
| Spring Pressure (In / Ex): | 10.8 lbs |
| Valve Lash (In/Ex): | .003" |
| Ignition Timining: | 32 Deg BTDC |
Profile
| Intake | Exhaust | |
|---|---|---|
| Open: | 29.15 BTDC | 65.95 BBDC |
| Close: | 75.58 ABDC | 41.55 ATDC |
| Lift: | .2245" | .231" |
| C/L: | 114.0 ATDC | 103.5 BTDC |
| DUR @ 50: | 220.5 Deg | 223.5 Deg |
| DUR @ 200: | 82.1 Deg | 92.95 Deg |
